Hardware Engineering & Diagnostics Lab
Before architecting low-latency distributed runtimes and compiler-grade verification gatekeepers, Patrick founded and operated a physical commercial computer retail and repair operation in Sweden (2015–2022). True mastery came from daily hands-on execution across thousands of real customer motherboards and systems—further complemented by traveling in person to Guangzhou, China to complete two specialized micro-soldering certificate courses at REWA Technology.
The Sovereign Systems Principle:Software does not execute in an abstract void—it runs on silicon, traces, cache lines, magnetic platters, NAND cells, and memory buses. Physical hardware fluency directly informs every low-level systems decision: cache locality, memory barriers, PCIe bus bandwidth, write amplification, and non-blocking runtime event loops.
Inside the Hardware Lab & Diagnostic Workshop
Primary diagnostic command station: multi-monitor telemetry displays, oscilloscope signal analyzers, soldering rework benches, and high-density test enclosures.
Multi-Disciplinary Hardware Engineering & Repair (2015–2022)
Operated between 2015 and 2022 as a comprehensive commercial repair and diagnostic facility servicing thousands of systems across all major hardware architectures. Data recovery across all storage hardware was one of many specialized technical services delivered alongside component-level SMD/BGA rework, electronic schematic tracing, and micro-soldering education for business owners.
Component-Level Diagnostics, Schematics & SMD/BGA Micro-Soldering
Full schematic fluency, pinout I/O architecture, clock/data lines & board-level rework
Comprehensive mastery of electronic schematics, pinout architectures, and circuit diagnostics. Tracing clock lines and data buses, isolating power rail shorts, and executing precision microscope SMD and BGA component rework.
Custom Enterprise Workstations & High-Density Compute
Multi-GPU AI compute, dual-loop liquid cooling & thermal dynamics
Design, custom fabrication, and acoustic/thermal optimization of extreme-density compute workstations. Engineered for continuous sustained 100% matrix workloads across multi-GPU setups without thermal throttling.
Computer Retail & Multi-Industry E-Commerce Founder
3 physical retail locations in Sweden, multi-industry e-commerce ventures & automated supply chain logistics
Founder and operator of physical commercial computer retail stores and component diagnostics laboratories across 3 locations in Sweden, alongside founding, scaling, and managing multiple high-volume e-commerce enterprises across varied consumer and B2B sectors. Managed full supply chain operations: international supplier sourcing, custom product lines, automated order processing, multi-carrier warehouse logistics, conversion rate optimization, and payment gateway infrastructure.
Rackmount Servers & High-Throughput Storage Clusters
Enterprise 1U–4U chassis, SAS/NVMe backplanes & 10G/40G fiber
Physical assembly, cable routing, and out-of-band management for enterprise rackmount servers. Configuring redundant hot-swap power bays, hardware RAID controllers, SAS/NVMe backplanes, and low-latency SFP+ optical transceivers.
Data Recovery Lab (One of Many Specialized Services)
Forensic recovery across all storage hardware, electronics, drives & flash media
One of many specialized commercial services provided by the lab: full-spectrum data recovery matching dedicated forensic firms. Rescuing vital data across all storage hardware, electronics, mechanically degraded drives, bricked NVMe/SATA SSDs, and broken USB flash sticks with PCB donor swaps, SPI ROM transfers, bad-sector carving, and raw NAND dumps.
Micro-Soldering Academy & Educator for Business Owners
Educating other commercial repair shop owners & professional technicians
Established and led professional micro-soldering education, training fellow computer repair business owners, workshop founders, and commercial technicians. Courses covered schematic and boardview interpretation, thermal profiling, stereomicroscope dexterity, BGA reflow, and power rail short isolation.
Physical Workshop Locations & Staff Operations
Authentic archival laboratory photography documenting 3 commercial facilities, multi-technician diagnostic benches, workstation assembly bays, and micro-soldering stations in Sweden (2015–2022).

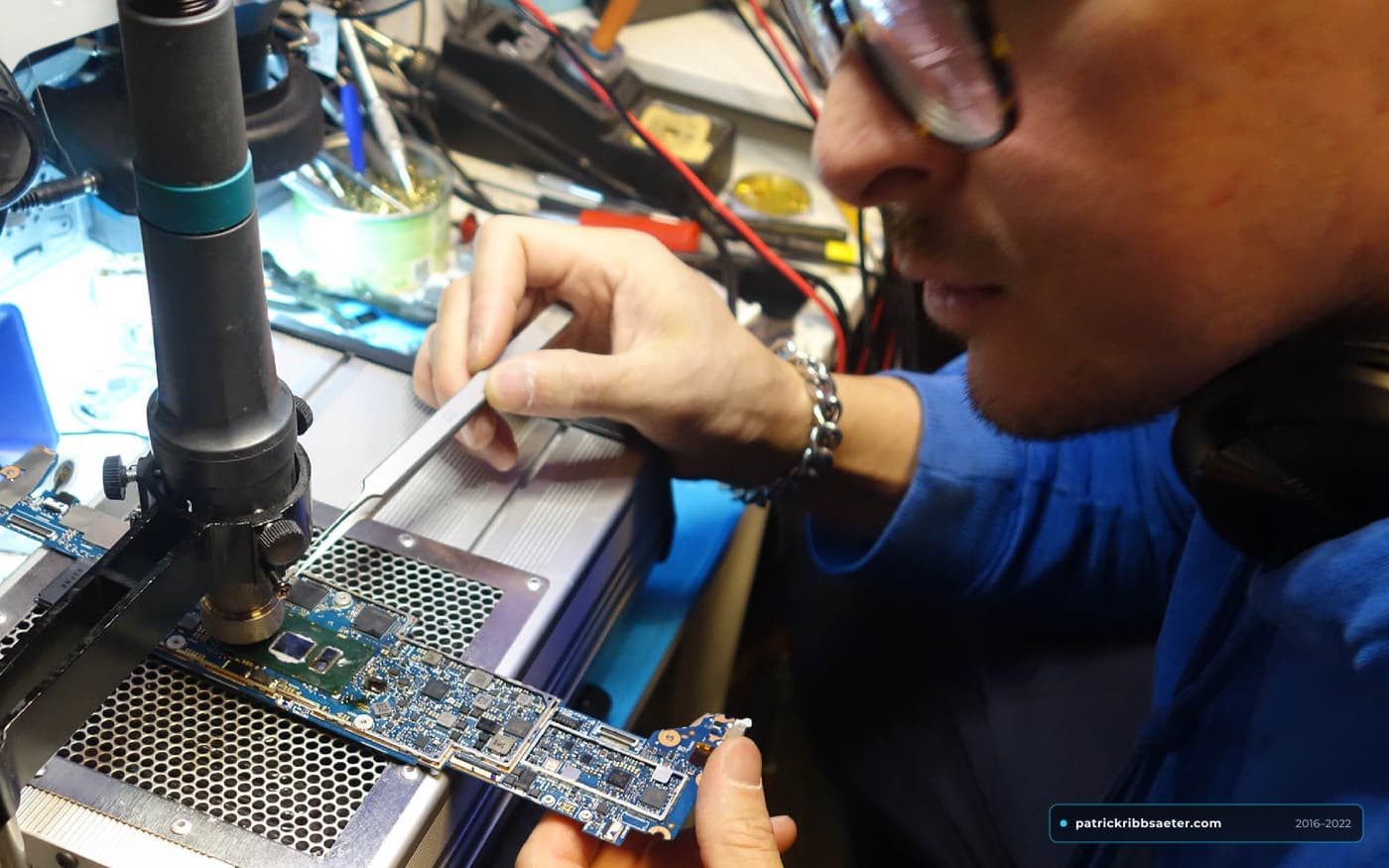

Location 1: Apple MacBook & Logic Board Rework Laboratory
Component-level logic board diagnostics, micro-soldering, and motherboard rework at the archival laboratory facility in Sweden. High-magnification stereo microscope inspection, AmTech flux-assisted rework, BGA pad preparation, and multi-bay diagnostic testing on Apple MacBook systems.

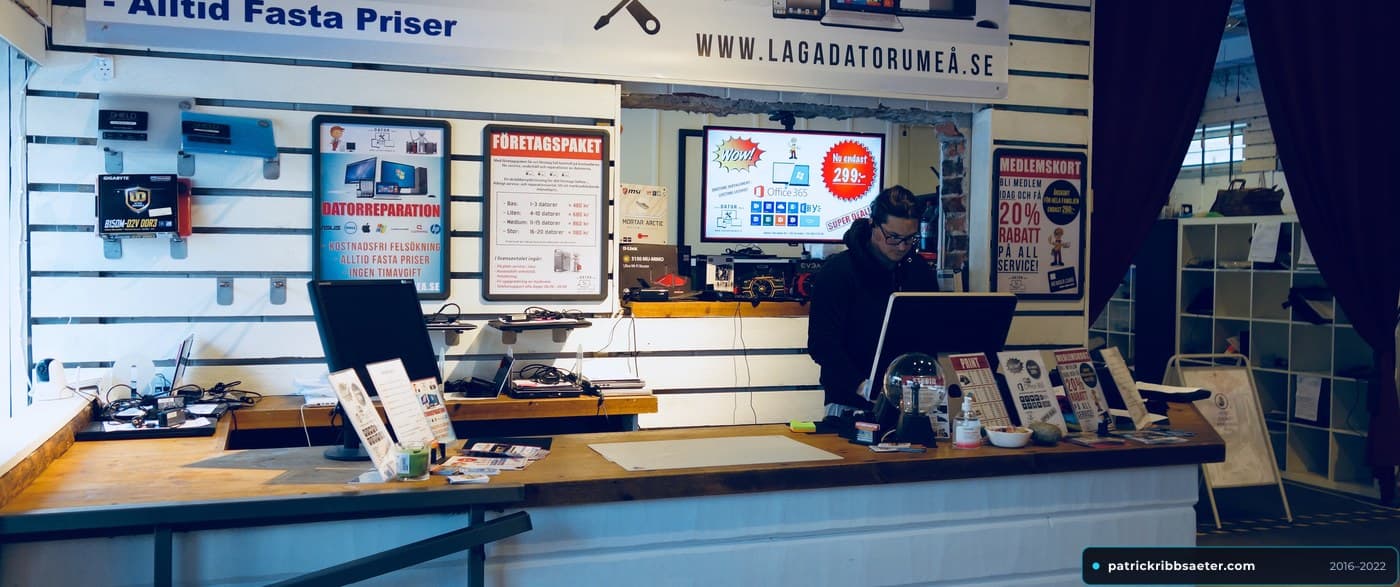

Location 2: Central Retail Storefront & Reception
Patrick Ribbsaeter at the customer reception counter with retail motherboard displays, client hardware intake terminal, and exposed-brick portal connecting the lobby to the back repair lab.
Location 3: Hardware Intake & Laptop Staging Bay
Dedicated hardware intake and laptop staging counter featuring categorized repair bays, workstation validation terminal, and custom desktop chassis testing.

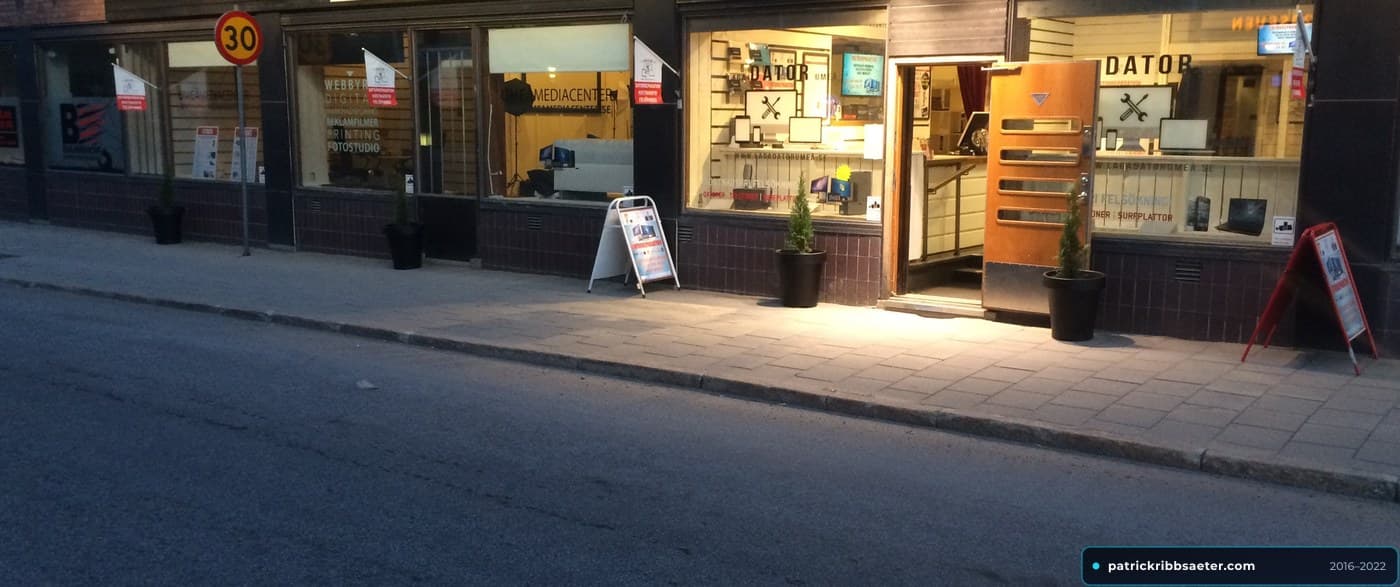

Commercial Storefront & Laboratory Facility Entrance
Commercial facility entrance featuring illuminated service displays, client intake portal, and dedicated access for consumer and enterprise systems.
Ultrasonic PCB Cleaning & Reflow Rework Bay
Dedicated board cleaning and thermal curing station featuring a heated stainless-steel ultrasonic PCB cleaning bath, BGA curing oven, binocular stereo microscope, and MacBook logic board bench.
Dual-Bay Apple iMac & Logic Board Disassembly Floor
Multi-bench laboratory floor configured for concurrent 27-inch Apple iMac Retina display separation, logic board extraction, ultrasonic cleaning, and categorized component storage racks.
Workshop Operations & Technical Staff
Commercial workshop floor with technical staff servicing consumer and enterprise systems concurrently across dedicated repair workbenches, test monitors, and chassis assembly bays.
Technician Diagnostic Stations & Software Validation
Technicians in company attire working at diagnostic stations with illuminated magnifying lamps, magnetic screw mats, and active multi-laptop testing benches.
Custom Workstation Assembly & Motherboard Validation Bay
Hardware integration bench featuring custom workstation chassis assembly, GIGABYTE AB350-Gaming 3 motherboard & dual-fan GPU validation, and Apple iMac hardware testing.
PACE BGA Infrared Preheater & Microscope Workstation
PACE ST 400 infrared thermal preheater platform and high-magnification stereomicroscope setup for multi-layer PCB solder rework, short isolation, and BGA chip alignment.
Lattice USB JTAG In-System Logic Programmer
Lattice Semiconductor HW-USBN-2A USB ispDOWNLOAD hardware programmer connected directly to JTAG test points (TCK clock, TMS, TDI, TDO, VCC, GND) on a disassembled MacBook Pro logic board.

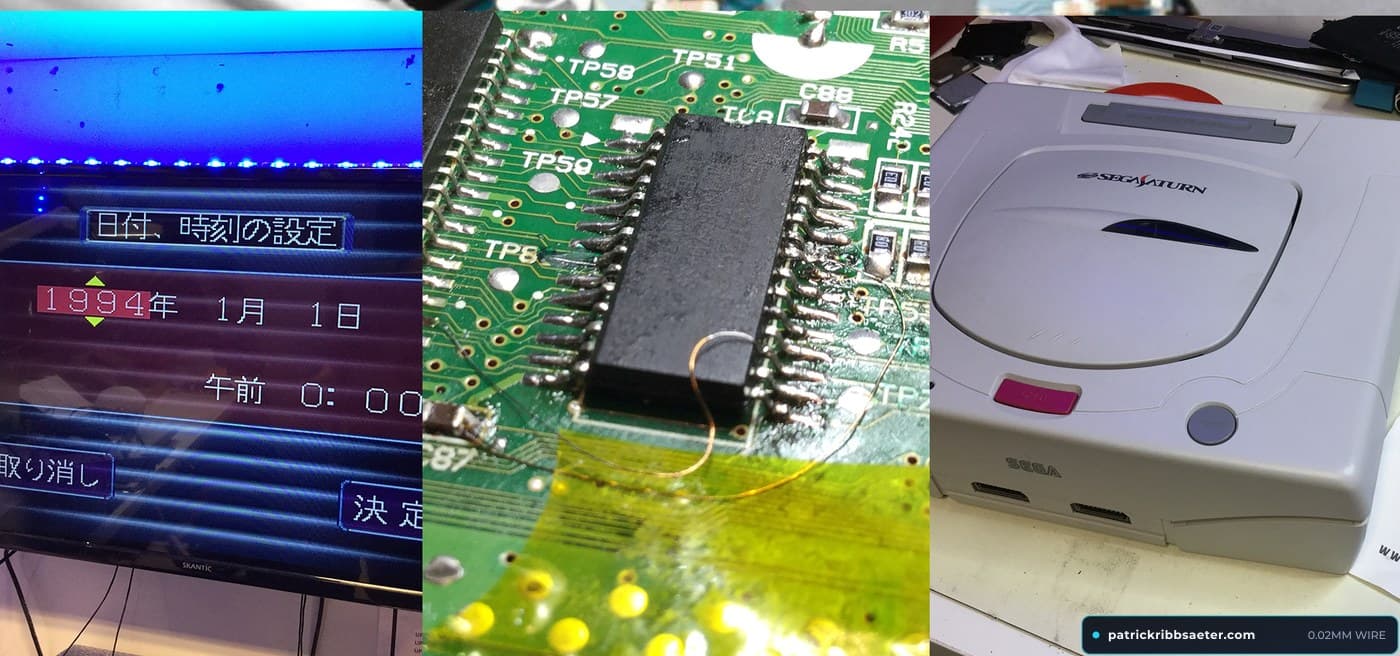

Gaming Console Restoration & 0.02mm Trace Jumper
Microscopic enameled copper wire trace jumper (0.02mm) hand-soldered to an SOP IC pin during Japanese Sega Saturn BIOS chip restoration, validated on test display.
Showcase Workbench & Component Rework
Authentic workbench captures from the Umeå lab: high-density BGA rework, stereo microscope micro-soldering, and boardview schematics.
Master Diagnostic & Soldering Workbench
The primary diagnostic station: binocular stereo boom microscope with ring illumination, digital storage oscilloscope, analog and digital multimeters, regulated DC bench power supply (19V / 0.007A short-circuit isolation), and temperature-controlled hot air rework.
Micro-Soldering Academy: Student Training
A fellow repair business owner undergoing hands-on micro-soldering training at Patrick's education program. Sunshine P-1505TD DC power supply actively injecting voltage for short-circuit detection under a trinocular stereo microscope.
High-Density BGA Desoldering & Reballing
De-soldered GDDR memory IC array and BGA pad grid preparation under uniform bottom preheater. Microscopic pad cleaning and solder wick flux evacuation to prepare for precision reballing.
Schematic & Boardview Fault Isolation
Tracing power rails using OpenBoardView and PDF schematics to pinpoint failed U5450 (INA214 current-sense amplifier IC in SC-70 package) on an Apple logic board before hot-air micro-soldering.

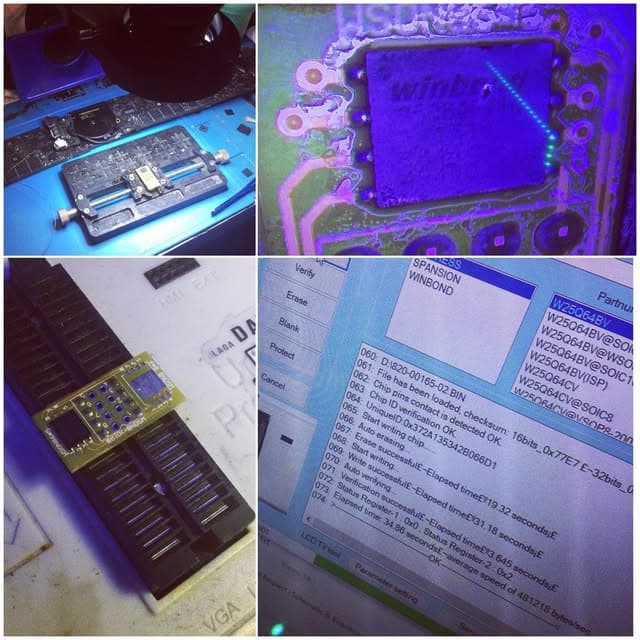

SPI Flash EEPROM & EFI Firmware Recovery
Direct socket programming of Winbond W25Q64BV SOIC-8 flash chip using a hardware EEPROM flasher to repair corrupted EFI BIOS firmware (820-00165 logic board).
24-Pin USB-C Port SMD Reconstruction
High-precision replacement of damaged 24-pin dual-row USB-C charging connector on a Nintendo Switch mainboard with Kapton heat shielding and M92T36 power management IC inspection.

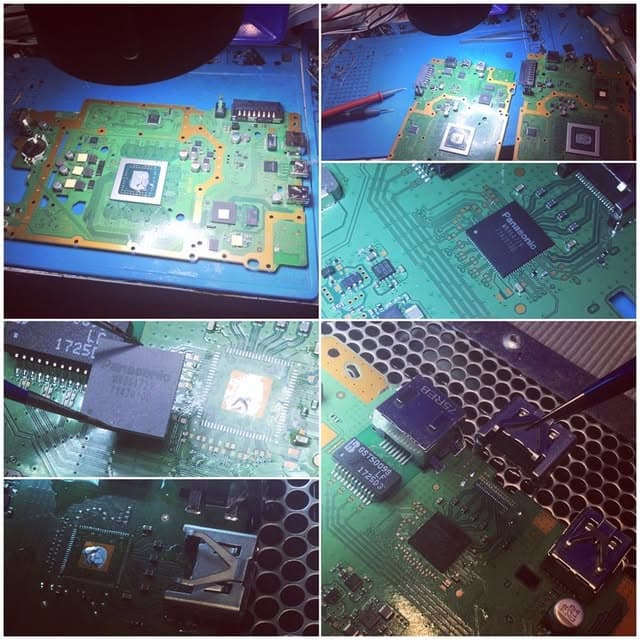

HDMI Encoder IC & Port Micro-Soldering
Hot-air removal and replacement of blown Panasonic MN864729 HDMI transmitter chip and reinforced HDMI receptacle on a PlayStation 4 motherboard under stereo microscope.
Micro-Soldering Academy: Educating Business Owners
Professional micro-soldering education program conducted by Patrick Ribbsaeter for other repair shop owners and commercial technicians: multi-layer boardview schematics, multimeter diagnostics, and stereomicroscope micro-soldering.
Display Panel Backlight Array Reconstruction
Complete disassembly of a 65-inch display down to diffuser layers to replace burnt LED backlight strips, balancing current draw across all strings.
Data Recovery: Hardware, Electronics & Storage Media
One of many specialized commercial services: forensic data recovery across all hardware, electronics, storage drives, SATA/NVMe SSDs, and flash media. Donor PCB swaps, sector-level surface cloning, and raw filesystem carving matching specialized recovery firms.
Motherboard SMD Desoldering & Copper Wick Pad Prep
Direct component-level soldering and copper braid (goot Wick) pad desoldering on a multi-layer laptop motherboard mounted over a bottom thermal preheater.
PACE Bottom Preheater & Stereo Microscope Motherboard Rework
Multi-layer laptop motherboard mounted on a PACE infrared bottom thermal preheater under the binocular stereo microscope and hot-air rework nozzle for warp-free BGA and SMD component replacement.
Lab Teardown & Micro-Soldering Video Archive
Recorded benchtop casework from the commercial computer repair shop (2015–2022). Click any video to open theater playback with left and right navigation.
HP Motherboard SMD Hot-Air Rework & Component Micro-Soldering
Original archive: "HP Dator Reparation | Boka In En Felsökning Du Med"
Precision hot-air SMD rework and fine-pitch component micro-soldering on a multi-layer board clamped in an ESD PCB vice under the stereo microscope.
Controlled hot-air thermal reflow profile with precision micro-tweezers component alignment, flux-assisted pad wetting, and microscopic pin inspection.
MacBook Logic Board Diagnostics & Micro-Soldering Command Bench
Original archive: "Macbook Reparation"
Inside the U-shaped micro-soldering and diagnostic command workstation during active Apple MacBook logic board fault isolation and component-level repair.
Combining live boardview schematic tracing, DC bench power supply current-draw telemetry, optical magnification, and multi-station ESD repair workflows.
Micro-Soldering HDMI Port Replacement & Pad Reconstruction
Original archive: "Lödning HDMI Playstation 4 | Laga Dator Umeå"
Component-level SMD replacement of damaged HDMI interface under high-magnification stereomicroscope. Precision desoldering, pad cleaning, and micro-pencil terminal anchoring.
Demonstrates controlled thermal profile with hot-air pre-heating, lead-free to leaded solder alloy transition for stress reduction, and individual pin bridge inspection.
Liquid-Damaged MacBook Air Logic Board Diagnostics & Corrosion Triage
Original archive: "Macbook Air Vattenskadad | Laga Dator Umeå"
Multi-stage triage of liquid-damaged Apple logic board. Tracing oxidized copper traces, shorted capacitors on primary power rails (PPBUS_G3H), and component reflow.
Boardview and schematic cross-referencing to isolate shorted power delivery rails, ultrasonic flux residue cleaning, and thermal imaging diagnostics.
High-Density Gaming Workstation — Motherboard & Chassis Migration
Original archive: "Gaming Dator Byte Moderkort och Chassi #datorreparation"
Full architectural teardown and migration into high-airflow chassis. Motherboard swap, precision cable routing, memory timing validation, and thermal paste application.
Optimizing static pressure airflow dynamics, VRM cooling contact pressure, and multi-channel DDR4/DDR5 memory stability testing under synthetic burn-in loads.
GPU Replacement & VBIOS Firmware Programming
Original archive: "Gaming Dator Byte Grafikkort och Programmering Firmware"
Hardware graphics processor replacement accompanied by direct firmware flashing and VBIOS validation for stability and display output synchronization.
Verifying PCIe lane link negotiation, flashing hardware firmware profiles, and auditing power draw across 8-pin PEG connectors under full TDP matrix loads.
Micro-Soldering USB Charging Port & Through-Hole Anchoring
Original archive: "Lenovo Surfplatta Laddport Lödning #datorbutik"
Precision replacement of broken micro-USB charging receptacle on fragile multi-layer PCB. Reinforcing structural ground pins to prevent mechanical delamination.
Mitigating trace tearing on ground planes using low-temperature bismuth alloy desoldering, flux-assisted alignment, and high-tensile anchor soldering.
Black Screen & BSOD Hardware Fault Tree Isolation
Original archive: "Gaming Dator Svart Skärm Och Blå Skärm | Datorreparation"
Systematic root-cause triage of intermittent system freezes and BSOD crash loops. Isolating failing memory controllers, power supply ripple, and PCIe bus faults.
Applying structured fault-tree analysis: Power Delivery → POST Codes → RAM Bus Ring Buffers → PCIe Handshake → OS Kernel Crashdump Dumps.
Physical Storage Recovery & Magnetic Platter Triage
Original archive: "Dataräddning Toshiba Hårddisk"
Low-level data recovery from corrupted magnetic disk storage. Diagnosing PCB controller faults, spindle motor seized bearings, and sector read timeouts.
Hardware write-blocker isolation to prevent filesystem mutation, sector-by-sector bitstream cloning with adaptive timeout thresholds, and raw partition recovery.
Apple iMac 21.5" Retina Logic & Thermal Disassembly
Original archive: "iMac 21" Retina | Laga Dator Umeå | Datorreparation"
Delicate acoustic and display separation of bonded Retina glass panel, logic board extraction, storage upgrade, and cooling fan refurbishment.
Using specialized cutting tools for factory display adhesive, inspecting high-voltage inverter circuits, and replacing legacy spinning disks with NVMe SSD arrays.
Firmware Recovery & Storage Logic Troubleshooting (Error SU-41350-3)
Original archive: "Playstation 4 SU 41350 3 Error Code #playstation"
Triage of persistent system firmware initialization failure. Diagnosing storage bus read errors, corrupted system NAND partition, and safe mode recovery.
Auditing SATA controller communication lines, checking for damaged decoupling capacitors near storage bridge IC, and flashing clean system recovery images.
Severe Liquid Corrosion Cleaning & Power Rail Restoration
Original archive: "Macbook Air Vattenskadad #lagadatorumea"
Restoration of heavily corroded SMD pads and IC pins following liquid exposure. Removing conductive salt deposits and restoring missing trace continuity.
Chemical neutralization of galvanic corrosion, micro-jumping severed copper traces with 0.02mm insulated enameled wire, and applying conformal UV coating.
Custom Gaming Workstation Diagnostics & Chassis Rebuild
Original archive: "Gaming Dator Reparation Och Byte Kabinett"
Full hardware diagnostics and chassis reconstruction for a high-TDP custom gaming rig. Resolving thermal throttling, power rail voltage drop, and airflow bottlenecks.
Re-routing ATX 24-pin and EPS 8-pin power harnesses, re-seating CPU cooler contact plate with high-conductivity thermal compound, and verifying sustained boost clocks.
OLED Display & Flex Bus Connector Reconstruction
Original archive: "OnePlus 5 Skärmbyte #lagadatorumea"
Precision micro-assembly and flex-cable FPC board-to-board connector inspection during mobile OLED display module reconstruction on the ESD bench.
Controlled thermal plate adhesive separation, microscopic inspection of fine-pitch FPC MIPI DSI display pins, and frame perimeter bonding.
Multi-Architecture Logic Board, Laptop & LCD/LED Panel Diagnostics
Original archive: "Laga Dator Umeå Macbook Reparation Iphone och laptops TV, LCD, LED"
Full-spectrum commercial workshop operations servicing multi-layer laptop logic boards, mobile SoC assemblies, and high-voltage LCD/LED display driver boards.
Concurrent multi-bench triage combining power-rail voltage probing, backlight inverter current balancing, and component-level SMD rework across consumer and enterprise hardware.
How Physical Silicon Discipline Informs Systems Architecture
Operating a physical repair and diagnostic lab transforms how software engineering is approached. High-level software constructs are transparently mapped to physical electronic realities:
Tracing 64-bit DDR memory channel traces with an oscilloscope grounds cache coherency, false sharing, and L1/L2/L3 cache misses in physical propagation delay and capacitance.
Bifurcating PCIe 5.0 lanes and debugging link negotiation directly informs KV-cache tensor parallelism, NCCL collectives, and custom Triton/CUDA kernel compilation.
Sustaining sub-60°C liquid loop temperatures across continuous 100% compute loads mirrors tuning low-latency event loops to prevent tail latency spikes under sustained load.
In a commercial repair shop, diagnosing a shorted board means zero speculative guessing. The exact same deterministic discipline governs debugging DuckDB, LLVM, and Tokio PRs.
Hardware Systems Advisory & Technical Collaboration
Seeking senior technical governance for specialized compute infrastructure, low-latency GPU runtimes, or sovereign hardware-to-cloud systems?
